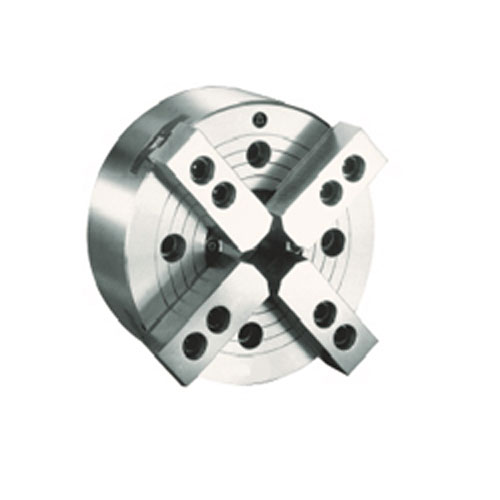

產品：KT55F/A
產品特性:
■特點：
☆符合日本標準。
☆與機床主軸直接連接，剛性好，精度高。
☆大通孔，高轉速。
☆適合加工方形或其它異形工件。
■Specificity:
☆Conform to Japanese standard.
☆Mounted with the spindlenose directly with nice rigidity and high accuracy.
☆Large through-hole ,high rotation speed.
☆The chucks are suitable for machining all kinds of irregular workpieces.
產品詳情
■尺寸參數 Dimension Parameters
|
規格D
Size
|
主軸頭號
Short
Taper No.
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
h1
|
P
|
Q
|
R
|
B
|
B1
|
d1
|
z-d
|
|
max
|
min
|
max
|
min
|
max
|
min
|
|
160
|
5
|
169
|
82.563
|
104.8
|
45
|
M55×2
|
60
|
91
|
120
|
15
|
6.5
|
20
|
22.75
|
9.25
|
32
|
29.25
|
19
|
26
|
14
|
16.3
|
6-M10
|
|
200
|
5
|
210
|
82.563
|
104.8
|
52
|
M60×2
|
66
|
109
|
148
|
23
|
6.5
|
25
|
29.75
|
14.75
|
38.7
|
35
|
20.5
|
37.5
|
21.5
|
16.3
|
6-M10
|
|
200
|
6
|
210
|
106.375
|
133.4
|
52
|
M60×2
|
66
|
103
|
142
|
17
|
6.5
|
25
|
29.75
|
14.75
|
38.7
|
35
|
20.5
|
31.5
|
15.5
|
19.5
|
6-M12
|
|
250
|
6
|
254
|
106.375
|
133.4
|
75
|
M85×2.0
|
94
|
120
|
163
|
25
|
6.5
|
30
|
33.75
|
14.25
|
51
|
46.6
|
25
|
33.5
|
14.5
|
19.5
|
6-M12
|
|
250
|
8
|
254
|
139.719
|
171.4
|
75
|
M85×2.0
|
94
|
113
|
156
|
18
|
8
|
30
|
33.75
|
14.25
|
51
|
46.6
|
25
|
26.5
|
7.5
|
24.2
|
6-M16
|
|
315
|
6
|
304
|
106.375
|
133.4
|
91
|
M90×2.0
|
108
|
129
|
180
|
25
|
6.5
|
30
|
45.75
|
15.75
|
61.3
|
56
|
28
|
33
|
10
|
19.5
|
6-M12
|
|
315
|
8
|
304
|
139.719
|
171.4
|
91
|
M100×2.0
|
108
|
122
|
173
|
18
|
8
|
30
|
45.75
|
15.75
|
61.3
|
56
|
28
|
26
|
3
|
24.2
|
6-M16
|
|
380
|
8
|
381
|
139.719
|
171.4
|
100
|
M110×2.0
|
120
|
174
|
235
|
33
|
8
|
43
|
54.75
|
20.25
|
70
|
64.7
|
35
|
56
|
33
|
24.2
|
6-M16
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|

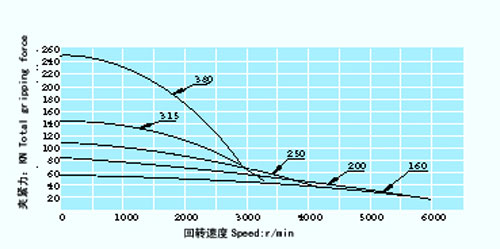

最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
160
|
12
|
5.5
|
16.5
|
41.8
|
6000
|
16-169
|
30-169
|
P25 125
|
13.7
|
|
200
|
16
|
7.4
|
23
|
57.1
|
5000
|
13-210
|
36-210
|
P25 155
|
24.3
|
|
250
|
19
|
8.8
|
29
|
75.4
|
4200
|
31-254
|
45-254
|
P25 180
|
41
|
|
315
|
23
|
10.6
|
37.3
|
97.8
|
3300
|
34-304
|
50-304
|
P25 205
|
65
|
|
380
|
23
|
10.6
|
48
|
122
|
2800
|
50-381
|
60-381
|
P25 250
|
130
|
產品備注
注：KT55F200/A25,KT55F250/ A26, KT55F315/ A26, KT55F380/ A28參照圖2。
Note：KT55F200/A25,KT55F250/ A26, KT55F315/ A26, KT55F380/ A28 referred to in Fig 2.
|
