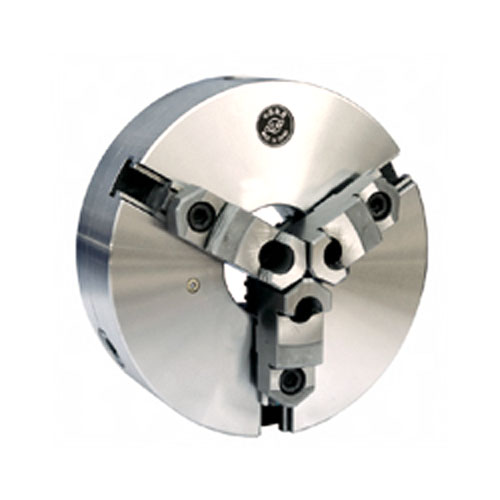

產品：K15
產品特性:
■特點：
☆符合DIN6350標準。
☆短圓柱連接形式。
☆鋼盤體，適用于較高轉速。
☆卡爪型式有整體爪和A、D型分離爪（符合ISO3442標準）。
■Specificity:
☆Conform to DIN6350 standard.
☆Short cylindrical center mounting.
☆Steel body and suitable for higher rotation speed.
☆The model of the jaws are one-piece jaws and two-piece jaws for form A 、D(conform to ISO3442standard).
產品詳情

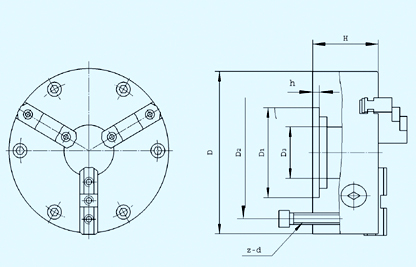

■尺寸、性能參數 Dimension Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
H
|
H1
|
H2
|
h
|
z-d
|
最大輸入扭矩Nm
Max.input torque
|
極限轉速r/min
Max.speed
|
凈重kg
Net WT.
|
|
80
|
56
|
67
|
16
|
66
|
50
|
—
|
3.5
|
3-M6
|
40
|
6600
|
1.8
|
|
100
|
70
|
83
|
20
|
75
|
55
|
—
|
3.5
|
3-M8
|
60
|
6000
|
3.2
|
|
125
|
95
|
108
|
32
|
84
|
58
|
—
|
4
|
3-M8
|
100
|
4900
|
4.9
|
|
160
|
125
|
140
|
40
|
100
|
70
|
—
|
4
|
6-M10
|
160
|
3800
|
9.4
|
|
160A
|
125
|
140
|
40
|
114
|
70
|
76
|
4
|
6-M10
|
160
|
3800
|
9
|
|
200
|
160
|
176
|
65
|
109
|
75
|
—
|
5
|
6-M10
|
250
|
3000
|
16
|
|
200A
|
160
|
176
|
65
|
122
|
75
|
80
|
5
|
6-M10
|
250
|
3000
|
14.6
|
|
250
|
200
|
224
|
80
|
122
|
82
|
—
|
5
|
6-M12
|
320
|
2400
|
26.1
|
|
250A
|
200
|
224
|
80
|
138
|
82
|
88
|
5
|
6-M12
|
320
|
2400
|
24
|
|
315
|
260
|
286
|
103
|
151
|
92.5
|
—
|
6
|
6-M16
|
400
|
1900
|
48
|
|
315A
|
260
|
286
|
103
|
157
|
92.5
|
95
|
6
|
6-M16
|
400
|
1900
|
42
|
|
400
|
330
|
362
|
138
|
165
|
105
|
-
|
6
|
6-M16
|
500
|
1500
|
81
|
|
400D
|
330
|
362
|
138
|
179
|
105
|
113
|
6
|
6-M16
|
500
|
1500
|
78
|
|
500
|
420
|
458
|
190
|
184
|
115
|
-
|
6
|
6-M16
|
630
|
1200
|
133
|
|
500D
|
420
|
458
|
190
|
202
|
115
|
126
|
6
|
6-M16
|
630
|
1200
|
126
|
|
500A
|
420
|
458
|
190
|
202
|
115
|
126
|
6
|
6-M16
|
630
|
1200
|
128
|
|
630
|
545
|
586
|
252
|
214
|
133.5
|
-
|
7
|
6-M16
|
800
|
1000
|
224
|
|
630D
|
545
|
586
|
252
|
218
|
133.5
|
142
|
7
|
6-M16
|
800
|
1000
|
215
|
|
